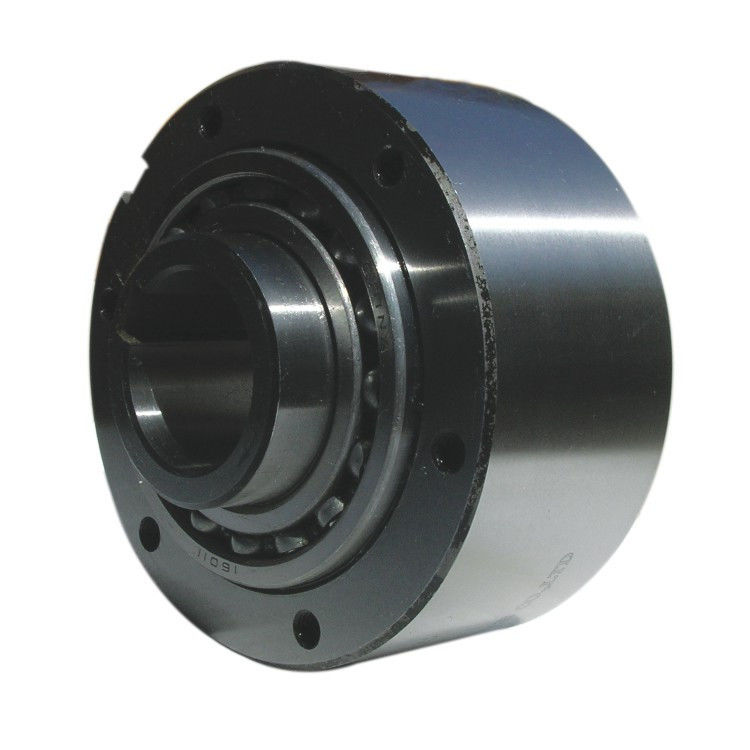

212mm Thickness One Way Sprag Clutch

제품 설명

CKZF-B Bearing Supported Non Contact Overrunning Clutch Bearing 100 - 310 mm

Roller Clutch root inner yoke (star wheel) and the position of the inner wheel is divided into different alien star wheel are two, so-called conjugate plane of the yoke means and the cylindrical bore of the cylinder, while the star wheel having a concave receiving rollers Slot parts. In order to facilitate processing and to ensure accuracy, the star wheel are widely used. Press the star wheel face different shape, can be divided into planar type, a logarithmic spiral type and surface type, three eccentric cylindrical surface. Wherein the planar processing is simple, widely used, but it does not vary with the wedge feeler roller wear and change the contact position change varies, but the processing is difficult; the degree of ease of processing and eccentric cylindrical surface, performance, life are living in the top Between the two [1].

Mounting Example
