경량 1750r/Min 9 밀리미터 길이 롤러 크러치 베아링, 롤러 램프 클러치

제품 설명

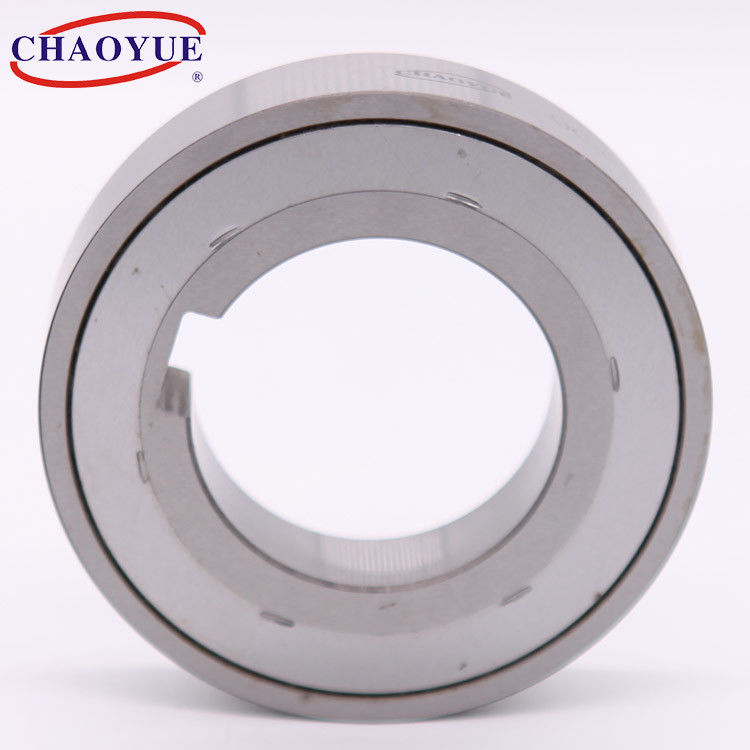

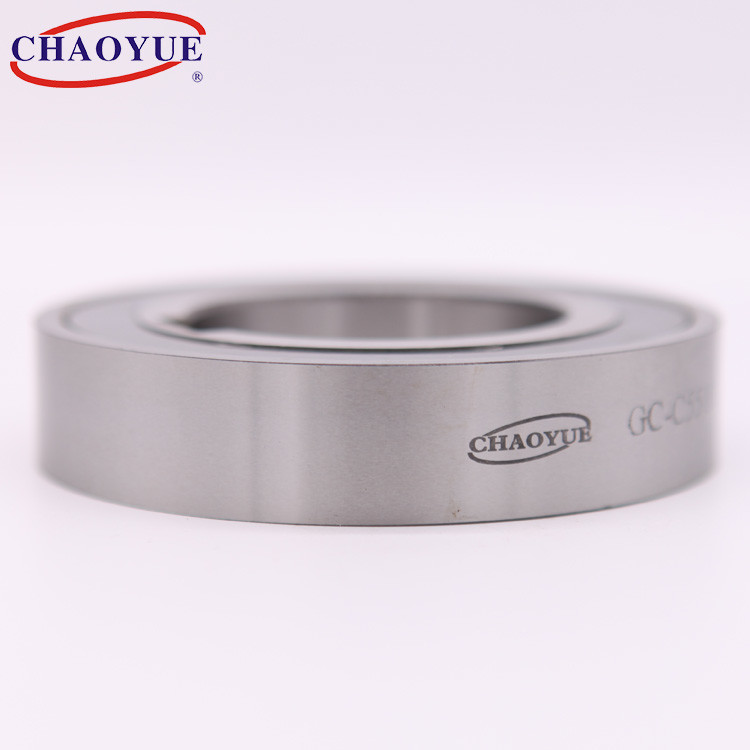

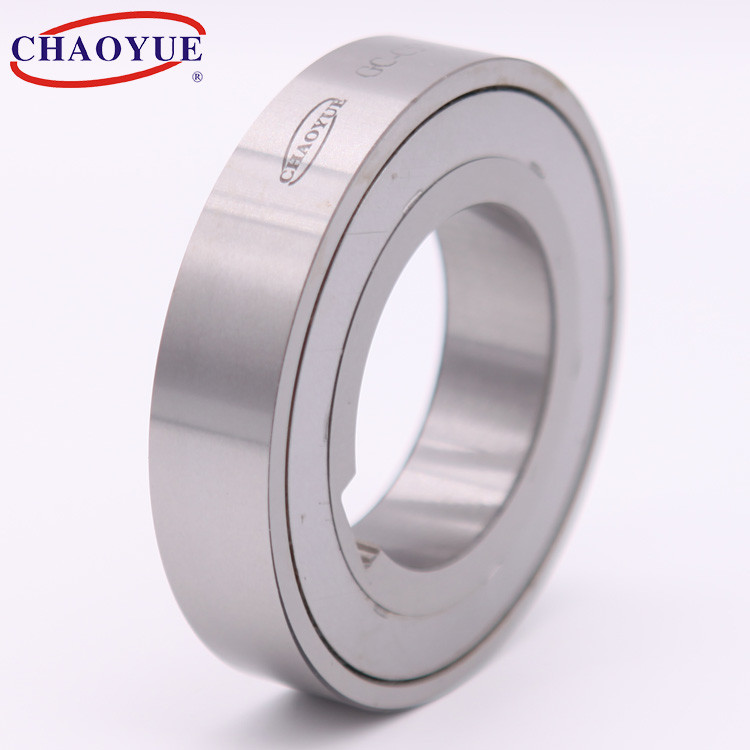

GC-C AS One Way Roller Clutch 30 - 140 Mm

When the roller type one-way clutch operation, the maximum contact stress occurs at the contact roller and the inner and outer rings. Strictly speaking, because the force on both sides of the roller is equal, and its contact area with the convex surface of the inner ring is smaller than the contact area with the concave surface of the outer ring, the maximum contact stress occurs on the contact surface between the roller and the inner ring. Here, the most prone to fatigue wear surface, typically in the form of pitting spalling failure. The metal materials used to manufacture the one-way clutch rollers and inner and outer rings are generally the same as the rolling bearing materials.

Mounting Example
